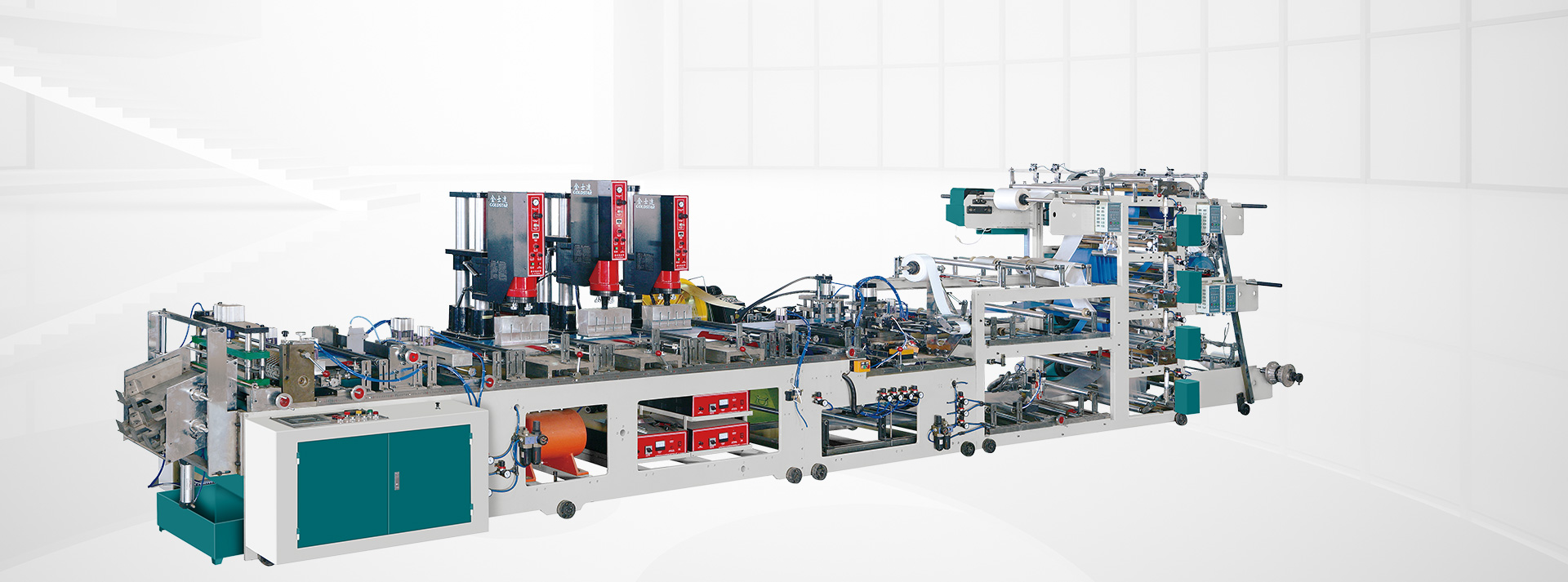

SYJ-600
電腦控制商業夾封切機
Computerized Business File Folder
Sealing and Cutting Machine(Auto clip structure)
商業夾是一種多層PP片材所制成的產品，而本機是專對此產品而設計的全自動化制造機。
Business file folder is made of multiple layer PP sheet and this machine is a fully automatic machine which is specified used to make this product.
| 主要技術參數 | Main Technical Parameter | SYJ-600 |
|---|---|---|
| 有效制造速度 | Suitable speed | 30-55張/分鐘 |
| 有效裁切寬度 | Effective width of sealing and cutting | 500毫米 |
| 適用材料 | Suitable Material | PP片料卷材 |
| 超聲波 | Ultrasonic | 3.2kw×3 |
| 有效封切厚度 | Effective Thickness of sealing and cutting | 0.1-0.3mm |
| 自動穿扣結構 | Auto dip structure | 配自動穿扣功能 |
| 外形尺寸 | Overall Dimension | 800×1700×2100mm(L×W×H) |
| 工作電壓 | Working Voltage | 三相 AC380V 50HZ |
| 整機功率 | Power | 18kw |
| 機器重量 | Weight | 約5t |
注：此圖如因技術改進使技術參數及外型發生變化，恕不另行通知，請閣下參照合同簽訂的配置及示意圖。
Note：Zhengdong reserve the right to change technical characteristics without previous advice.
