TF-700A
電腦控制保安袋制袋機

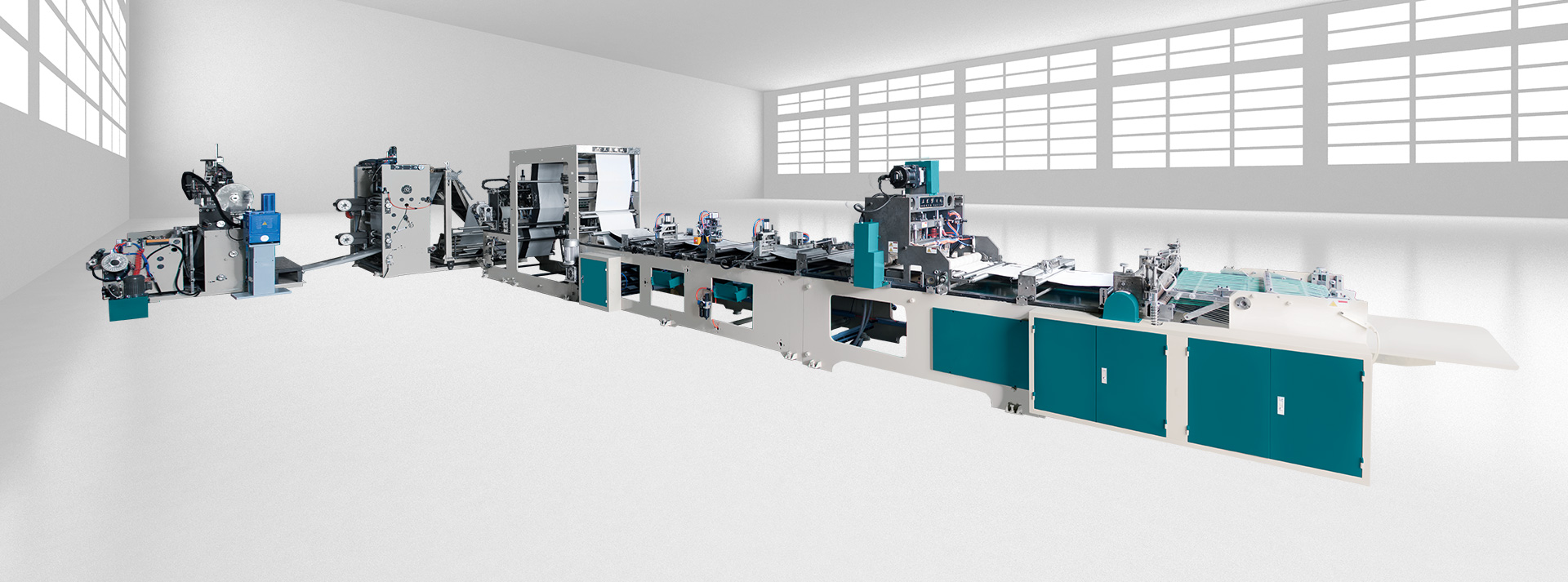

Security bag (STEB)making machine
主控部分采用帶多路DA輸出的運動控制器主控，觸摸式人機界面、伺服電機定長拉料，具有多點同控、自動計數、隨機噴碼、隨機噴膠、到數停機、停送、計數顯示、高位停車等功能。
色標跟蹤采用進口電眼。
主機采用國產矢量變頻器調速控制。
This machine adopts multi-channel DA output motion controller as mail control, touch screen as human machine interface, servo motor for pulling material, and it has many functions such as multipoint control, automatic counting, code spurting, glue spraying, stop when setted number of bag are finished, stop feeding, number showing, knife stop at highest position.
This machine uses imported electirc eye for code mark tracking.
Hose use vector inverter made in china as spee controling system.
| 主要技術參數 | Main Technical Parameter | ZD-1200B |
|---|---|---|
| 適用材料 | Suitable material | PE膜 |
| 最高機械速度 | Maximum machine speed | 120個/分鐘 |
| 有效制袋寬度 | Effective width of bag | 680mm |
| 有效封切厚度 | Effective thickness of sealing and cutting | 0.05-0.2mm |
| ******放卷直徑 | Maximum diameter of unwinding | 0600mm |
| 外形尺寸 | Overall Dimension | 13000x4300x1950 (LxWxHmm) |
| 工作電壓 | Voltage | 三相 AC380V 50Hz 30KW |
| 機械重量 | Machine Weight | 約6T |
注：此圖如因技術改進使技術參數及外型發生變化，恕不另行通知，請閣下參照合同簽訂的配置及示意圖。
Note：Zhengdong reserve the right to change technical characteristics without previous advice.
