SPD-600
電腦控制書皮袋制袋機
Automatic Book Cover Bag
Making Machine
該機是一臺專業生產PP書皮袋（書套袋），采用PP片材卷料從放卷到成品全自動制作。
該機采用五步進高精度定長系統，PLC主控，觸摸式人機操作界面。
配有自動計數、到數報警、到數停機、個數顯示、高位停車、自動送料、自動貼片、自動沖壓及燙封時間可調等功能。

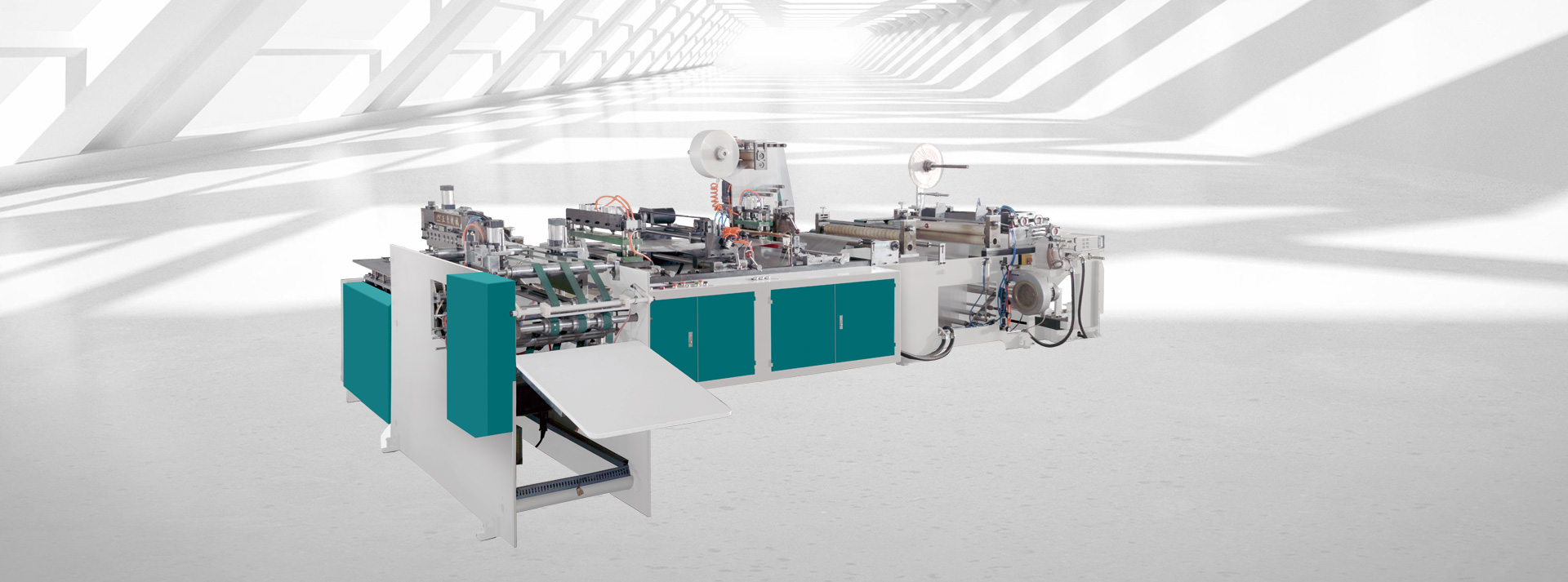

This is a professional machine to make PP book covers (book pockets) from PP sheet material roll to final products automatically.
This machine uses five steps high precision length-fixed control system，PLC main controller and touch screen operation interface.
This machine has many function function such as auto counting, alarming in advance, stopping at the set number, number display, stop at the high position, auto feeding, auto patching, auto punch and heat sealing etc.
| 主要技術參數 | Main Technical Parameter | SPD-600 |
|---|---|---|
| 適用材料 | Suitable material | PP sheet film roll |
| 有效制造速度 | Effective manufacturing speed | 每分鐘不少于30-40個（以中號袋樣為準） |
| ******制袋寬度 | Max with of bag | ≤610mm (指袋子展開時的******寬度) |
| ******制袋長度 | Max length of bag | ≤350mm (指袋子制成成品后的******長度) |
| 有效封切厚度 | Effective thickness for sealing and cutting | 0.08mm-0.25mm |
| ******放卷直徑 | Maximum unwinding diameter | Φ800mm |
| 外形尺寸 | Overall Dimension | 8500mm×2600mm×2000mm (L×W×H) |
| 工作電壓 | Voltage | 三相 AC380V 50Hz 15KW |
| 機械重量 | Machine weight | 約 2.5T |
注：此圖如因技術改進使技術參數及外型發生變化，恕不另行通知，請閣下參照合同簽訂的配置及示意圖。
Note：Zhengdong reserve the right to change technical characteristics without previous advice.
