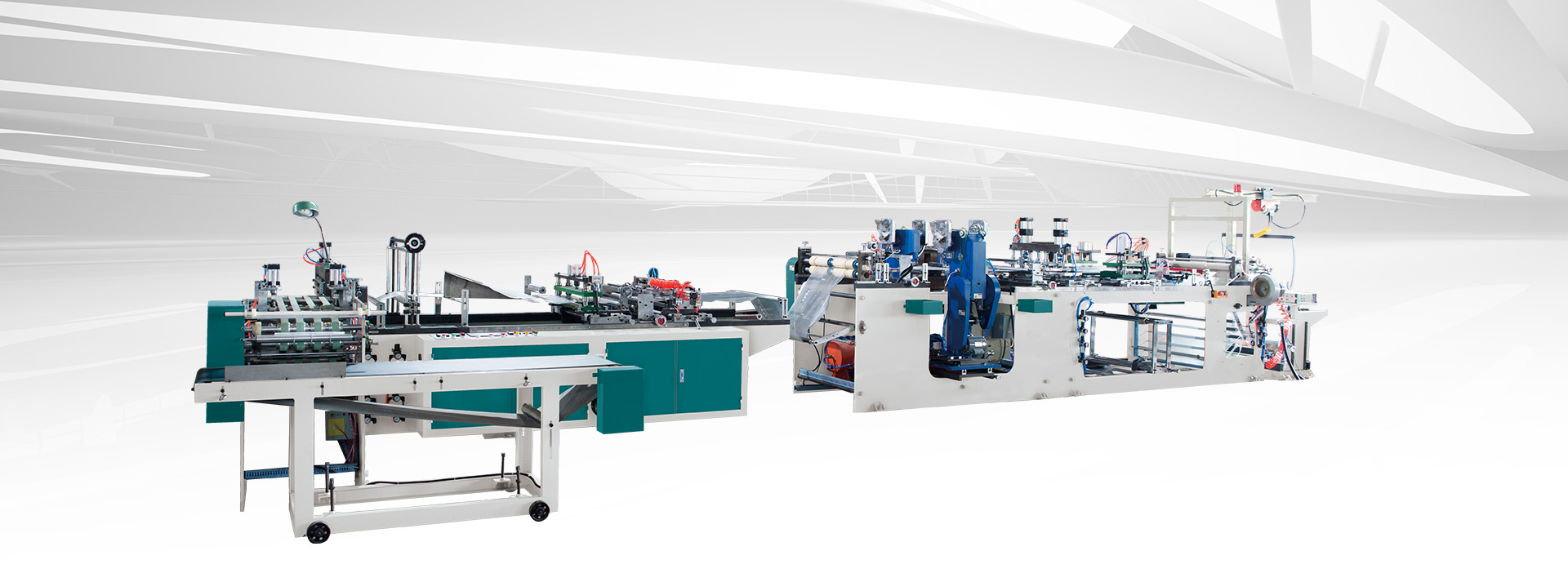

NKD-600
全自動紐扣袋制袋機
NKD- 209 Fully Automatic Button File
Folder Making Machine
本機采用PP片材卷料全自動制作209按扣文件袋。
本機采用PLC電腦，伺服電機定長拉料，觸摸式人機操作界面，操作簡便，產品規格一致，封口牢固，質量美觀。
整機主要包括：整機主控系統，送料部分，自動上扣部分，放卷部分，切斷，封口部分等部分組成。
本機選擇精密耐用打孔模具，其故障率低，并配合高科技電子控制，使打孔位置非常精確，不易跑位。
It adopts the PP sheet material to make 209 button file folder fully automatic.
It adopts man touch interface with PLC computer,servo motor with fixed length to pull material.Convenient operating,secure sealing,high quality and beautiful appearance.
lncluding:main control system,feeding part,atomatic setting button part,unwinding part,cutting part and sealing part etc.
It adopts punch die with high precision and durability,low fault rate.lt adopts high technical electric equippment to control,making the punch position with high precision.
| 主要技術參數 | Main Technical Parameter | DNG-650F |
|---|---|---|
| 有效制造速度 | Effective speed | 30-60張/分鐘 |
| 有效寬度 | Effective width | ≤600mm (指袋子展開時的******寬度) |
| 有效長度 | Effective length | ≥350mm (指袋子制成成品后的******長度) |
| 適用材料 | Suitable material | PP sheet material |
| ******放卷直徑 | Maximum diameter of unwinding | Φ600mm |
| 有效封切厚度 | Effective thickness of sealing and cutting | 0.09-0.2mm |
| 外形尺寸 | Overall Dimension | 85000×2600×2000mm(L×W×H) |
| 工作電壓 | Working Voltage | 三相 AC380V50HZ |
| 整機功率 | Power | 9kw |
| 機械重量 | Weight | 2.5T |
注：此圖如因技術改進使技術參數及外型發生變化，恕不另行通知，請閣下參照合同簽訂的配置及示意圖。
Note：Zhengdong reserve the right to change technical characteristics without previous advice.
